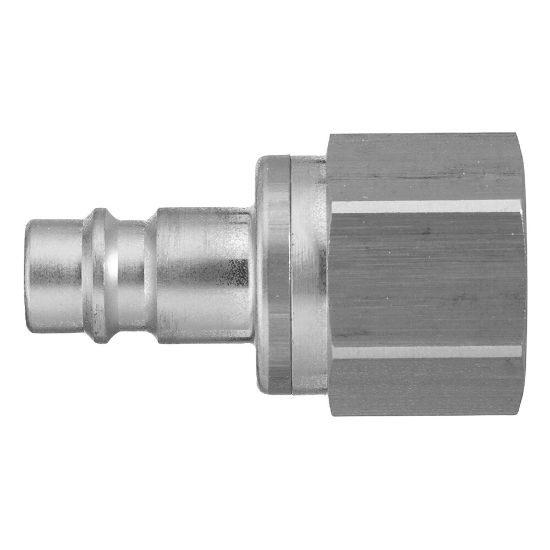

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SBIW21RVX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25SBIW21RVX
SKU: 25SBIW21RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25SBIW21RVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Brand	Parker	Shape	Straight
Valve Included	Yes	Technology	Fluid & Gas Handling
Weight	0.083 kg	Minimum Operating Temperature	5 °F
Seal Material	FKM	Industry	General Industrial
For Fluid Type	Gases	Length	56 mm
Body Material	Stainless Steel 303	Hex Size	24 mm
Region of Origin	Germany	Connection Type	Female
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 1/2
Interchange Type	European Profile	Function	Double Shut-Off
Plating Type	Without Surface Treatment	Maximum Operating Temperature	392 °F
Coupling Half	Plug	Valve Type	High Flow Valve
Diameter	7.4 mm (nominal)	Product Series	Series 25
Flow Rate	7.1 L/min (water)	Compatible Fitting	Series 1600 Coupler
Version	Double Shut-Off	Connection Size	1/2"
Connection Type	Female, BSPP	Materials of Construction	Stainless Steel AISI 303
Coupling Half	Plug
