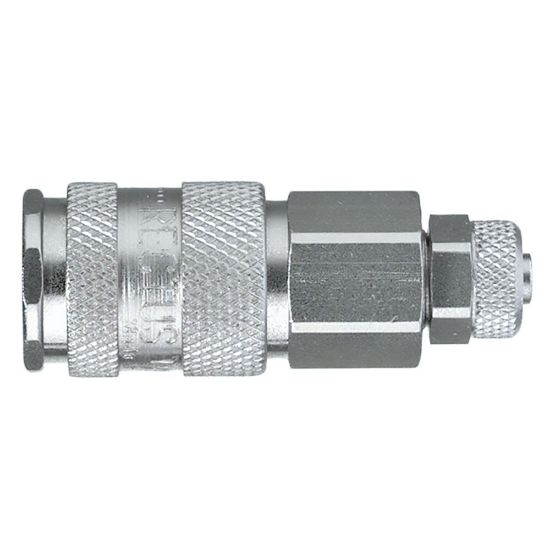

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBKO08RVX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBKO08RVX
SKU: 25KBKO08RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KBKO08RVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Specifications Met	RoHS
Shape	Straight	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
Technology	Fluid & Gas Handling	Minimum Operating Temperature	5 °F
Application	In-Plant Automotive	Seal Material	FKM
Maximum Operating Temperature	200 °C	For Fluid Type	Steam
Outside Diameter	23 mm	Hex Size	19 mm
Body Material	Stainless Steel 303	Length	61 mm
Region of Origin	Germany	Product Style	Quick-Connect
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Connection Type	Tube with Hose Nut, without Spring Guard
Plating Type	Without Surface Treatment	Sleeve Material	Stainless Steel
Connection Size	6x8 mm	Valve Type	High Flow Valve
Diameter	7.4 mm (nominal)	Product Series	Series 25
Flow Rate	7.1 L/min (water)	Weight	0.0952 kg
Version	Double Shut-Off	Coupling Half	Coupler
Connection Type	With Plastic Hose Connection	Materials of Construction	Stainless Steel AISI 303
Connection Size	6x8 mm
