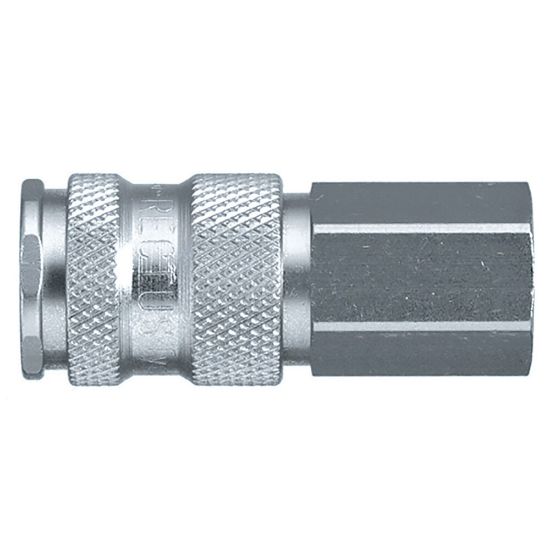

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBIW17EVX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBIW17EVX
SKU: 25KBIW17EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KBIW17EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Specifications Met	RoHS	Brand	Parker
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	Technology	Fluid & Gas Handling
Body Material	Stainless Steel 316L	Seal Material	FKM
Industry	General Industrial	For Fluid Type	Gases
Outside Diameter	23 mm	Application	Electronics
Hex Size	19 mm	Region of Origin	Germany
Connection Type	Female	Product Style	Quick-Connect
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 507 psi
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 3/8	Interchange Type	European Profile
Function	Double Shut-Off	Plating Type	Without Surface Treatment
Sleeve Material	Stainless Steel	Maximum Operating Temperature	392 °F
Valve Type	High Flow Valve	Diameter	7.4 mm (nominal)
Product Series	Series 25	Length	54.5 mm
Flow Rate	7.1 L/min (water)	Weight	0.0918 kg
Version	Double Shut-Off	Coupling Half	Coupler
Connection Size	3/8"	Connection Type	Female, BSPP
Materials of Construction	Stainless Steel AISI 316L
