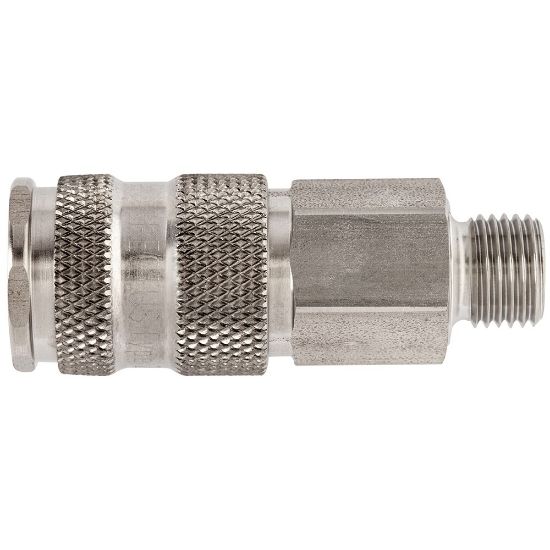

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBAW17RVX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBAW17RVX
SKU: 25KBAW17RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KBAW17RVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Shape	Straight
Industry	Transportation	Valve Included	Yes
Coupling Half	Coupler	Technology	Fluid & Gas Handling
Minimum Operating Temperature	5 °F	Application	In-Plant Automotive
Seal Material	FKM	Outside Diameter	23 mm
Hex Size	19 mm	Body Material	Stainless Steel 303
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 3/8
Interchange Type	European Profile	Function	Double Shut-Off
Plating Type	Without Surface Treatment	Sleeve Material	Stainless Steel
Maximum Operating Temperature	392 °F	For Fluid Type	Chemical Fluids
Valve Type	High Flow Valve	Diameter	7.4 mm (nominal)
Product Series	Series 25	Length	57.5 mm
Flow Rate	7.1 L/min (water)	Weight	0.0936 kg
Version	Double Shut-Off	Coupling Half	Coupler
Connection Size	3/8"	Connection Type	Male, BSPP
Materials of Construction	Stainless Steel AISI 303
