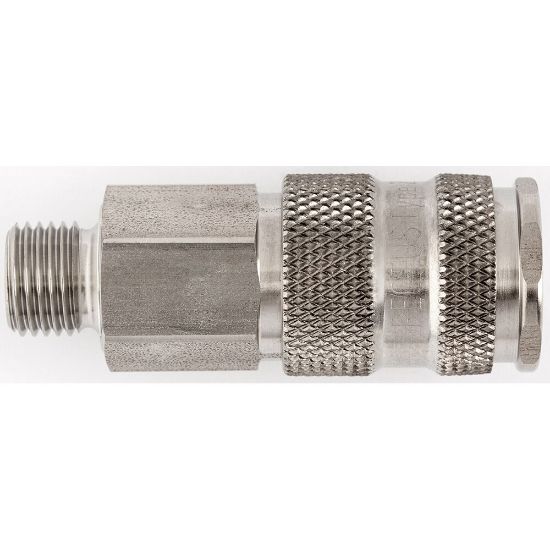

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBAD18MPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KBAD18MPN
SKU: 25KBAD18MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KBAD18MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Weight	0.103 kg	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	Technology	Fluid & Gas Handling
Length	60 mm	Industry	General Industrial
Outside Diameter	23 mm	Hex Size	19 mm
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Application	Mobile & Defence
Product Style	Quick-Connect	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Diameter	7.8 mm (nominal)	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Sleeve Material	Steel	Interchange Type	European Profile
Function	Double Shut-Off	For Fluid Type	Chemical Fluids
Valve Type	High Flow Valve	Product Series	Series 25
Connection Size	M18x1.5	Flow Rate	7.1 L/min (water)
Connection Type	Male, Metric	Materials of Construction	Brass, Nickel-plated
Version	Double Shut-Off	Coupling Half	Coupler
Connection Size	18x1.5 mm
