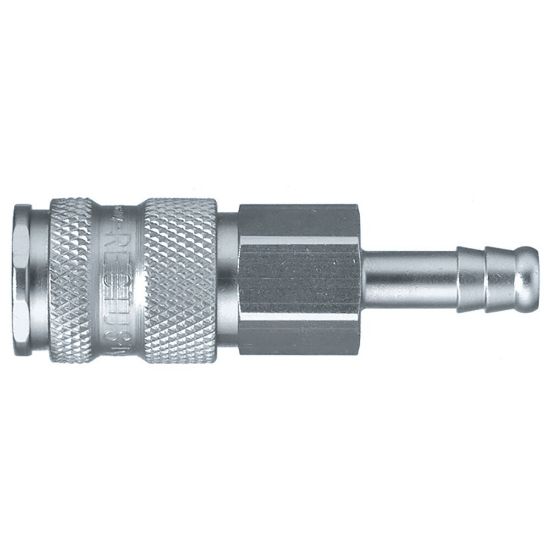

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KATF09MPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KATF09MPN
SKU: 25KATF09MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KATF09MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Weight	0.1 kg	Seal Material	NBR
Specifications Met	RoHS	Shape	Straight
Minimum Operating Temperature	-4 °F	Valve Included	Yes
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
For Fluid Type	Air	Technology	Pneumatics
Industry	General Industrial	Outside Diameter	23 mm
Hex Size	19 mm	Region of Origin	Germany
Connection Type	Hose Barb	Application	Mobile & Defence
Product Style	Quick-Connect	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Diameter	7.8 mm (nominal)	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	9 mm
Sleeve Material	Steel	Interchange Type	European Profile
Length	74 mm	Valve Type	High Flow Valve
Flow Rate	1800 L/min (air)	Product Series	Series 25
Connection Type	Hose Barb	Materials of Construction	Brass, Nickel-plated
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	9 mm
