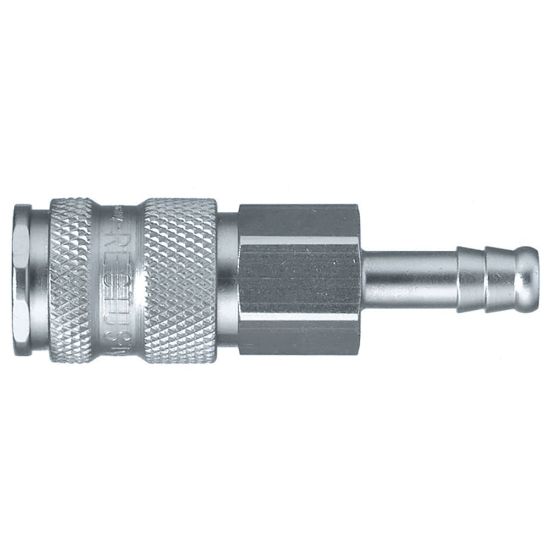

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KATF08RVX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KATF08RVX
SKU: 25KATF08RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KATF08RVX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.093 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Application	Industrial Machinery	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
For Fluid Type	Air	Technology	Pneumatics
Minimum Operating Temperature	5 °F	Seal Material	FKM
Industry	Healthcare & Life Sciences	Outside Diameter	23 mm
Hex Size	19 mm	Body Material	Stainless Steel 303
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Function	Single Shut-Off
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	8 mm	Interchange Type	European Profile
Length	73.5 mm	Plating Type	Without Surface Treatment
Sleeve Material	Stainless Steel	Maximum Operating Temperature	392 °F
Valve Type	High Flow Valve	Diameter	7.4 mm (nominal)
Flow Rate	1800 L/min (air)	Product Series	Series 25
Connection Type	Hose Barb	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	8 mm
Materials of Construction	Stainless Steel AISI 303
