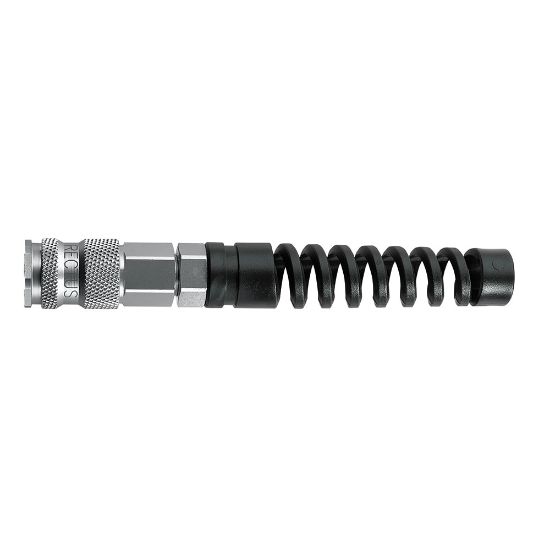

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KAKU10SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KAKU10SPN
SKU: 25KAKU10SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KAKU10SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Body Material	Steel	Seal Material	NBR
Weight	0.096 kg	Brand	Parker
Shape	Straight	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	For Fluid Type	Air
Technology	Pneumatics	Outside Diameter	23 mm
Application	Electronics	Length	159 mm
Hex Size	19 mm	Region of Origin	Germany
Connection Type	Tube with Spring Guard	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Diameter	7.8 mm (nominal)	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	6.3x9.5
Sleeve Material	Steel	Interchange Type	European Profile
Valve Type	High Flow Valve	Flow Rate	1800 L/min (air)
Product Series	Series 25
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	6.3x9.5 mm	Connection Type	Plastic Hose Connection with Spring Guard
Materials of Construction	Steel, Nickel-plated
