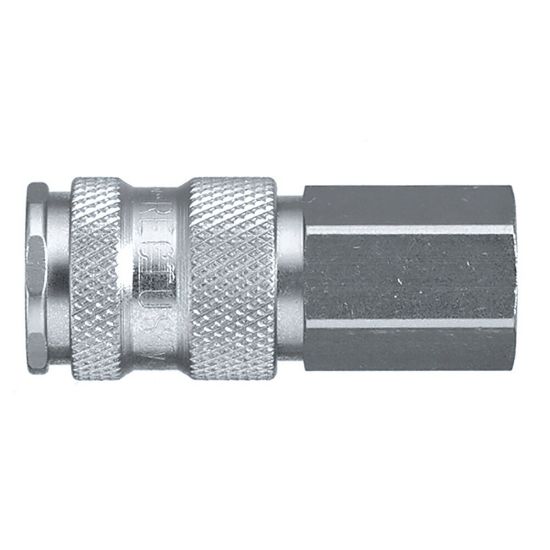

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KAIW21MPX

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25KAIW21MPX
SKU: 25KAIW21MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25KAIW21MPX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Seal Material	NBR
For Fluid Type	Compressed Air	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
Technology	Pneumatics	Outside Diameter	23 mm
Length	58 mm	Hex Size	24 mm
Region of Origin	Germany	Connection Type	Female
Specifications Met	ATEX	Application	Air & Gas Compressor
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Diameter	7.8 mm (nominal)
Function	Single Shut-Off	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 1/2
Sleeve Material	Steel	Interchange Type	European Profile
Plating Type	Without Surface Treatment	Valve Type	High Flow Valve
Flow Rate	1800 L/min (air)	Product Series	Series 25
Weight	0.1227 kg
Materials of Construction	Brass	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Female, BSPP
