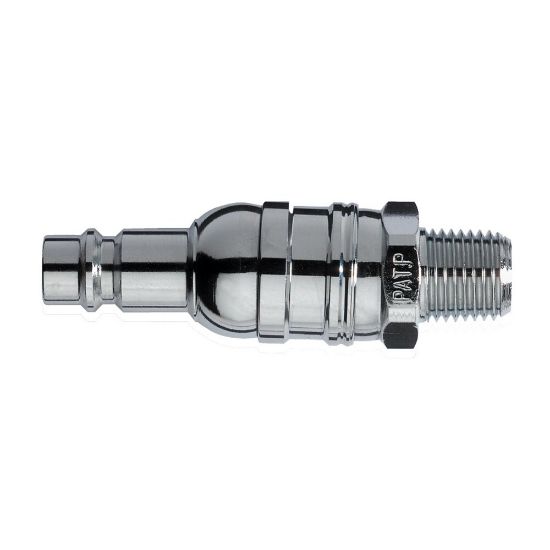

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25FAAK13SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 25FAAK13SPN
SKU: 25FAAK13SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 25FAAK13SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	Steel
Seal Material	NBR	Shape	Straight
Minimum Operating Temperature	-4 °F	Valve Included	No
Maximum Operating Temperature	212 °F	For Fluid Type	Air
Technology	Fluid & Gas Handling	Length	64 mm
Hex Size	17 mm	Flow Rate	1800 L/min
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Diameter	7.8 mm (nominal)
Function	Single Shut-Off	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	R 1/4	Sleeve Material	Steel
Interchange Type	European Profile	Connection Type	BSPT DIN 2999 Tapered
Application	Energy Management	Industry	Electronics
Valve Type	Without Valve	Coupling Half	Plug
Weight	0.0603 kg	Product Series	Series 25
Version	Single Shut-Off	Connection Size	1/4"
Coupling Half	Plug	Connection Type	Male, BSPT, Flex Joint
Materials of Construction	Steel, Nickel-plated
