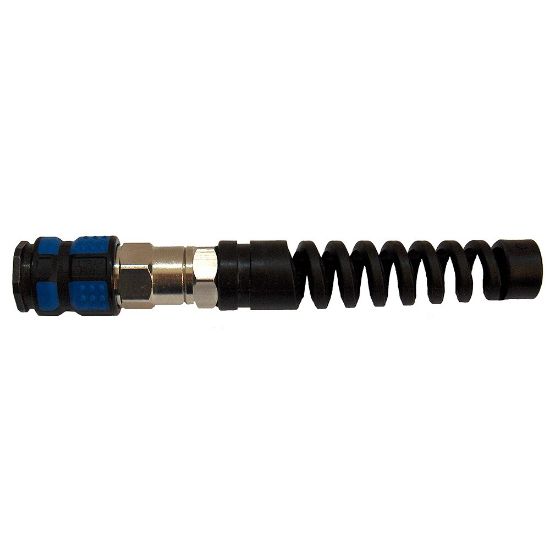

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1625KATP13SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1625KATP13SPN
SKU: 1625KATP13SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 1625KATP13SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	Steel
Seal Material	NBR	Brand	Parker
Shape	Straight	Minimum Operating Temperature	-4 °F
Valve Included	Yes	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	For Fluid Type	Air
Technology	Pneumatics	Industry	General Industrial
Region of Origin	Germany	Connection Type	Parker Push-Lok Hose
Specifications Met	ATEX	Application	Mobile & Defence
Product Style	Quick-Connect	Weight	0.0999 kg
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 35 bar
Length	30 to 155 mm	Diameter	7.8 mm (nominal)
Function	Single Shut-Off	Hex Size	13 to 24 mm
Flow Rate	2020 L/min (air)	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Product Series	Series 1625
Connection Size	13 mm	Sleeve Material	Technical polymer
Interchange Type	European Profile
Materials of Construction	Steel	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	13 mm
Connection Type	Parker Hose Barb
