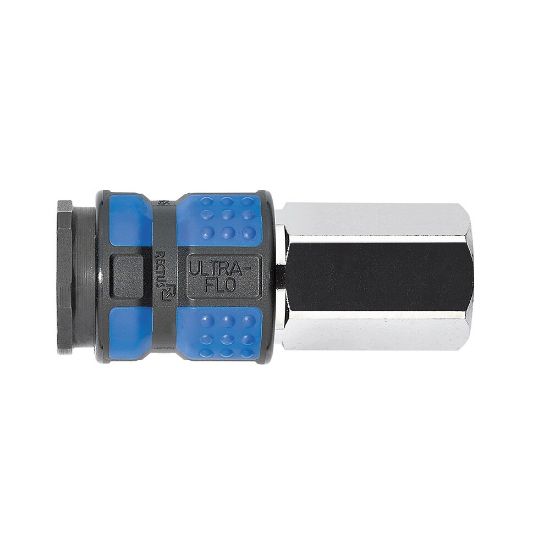

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1625KAIW13SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1625KAIW13SPN
SKU: 1625KAIW13SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 1625KAIW13SPN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.09 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Body Material	Steel	Seal Material	NBR
Specifications Met	RoHS	Brand	Parker
Application	General Industrial	Shape	Straight
Connection Size	G 1/4	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
For Fluid Type	Air	Technology	Pneumatics
Length	59 mm	Hex Size	19 mm
Outside Diameter	26 mm	Region of Origin	Germany
Connection Type	Female	Product Style	Quick-Connect
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 507 psi
Diameter	7.8 mm (nominal)	Function	Single Shut-Off
Flow Rate	2020 L/min (air)	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Product Series	Series 1625
Sleeve Material	Technical polymer	Interchange Type	European Profile
Materials of Construction	Steel	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	1/4"
Connection Type	Female, BSPP
