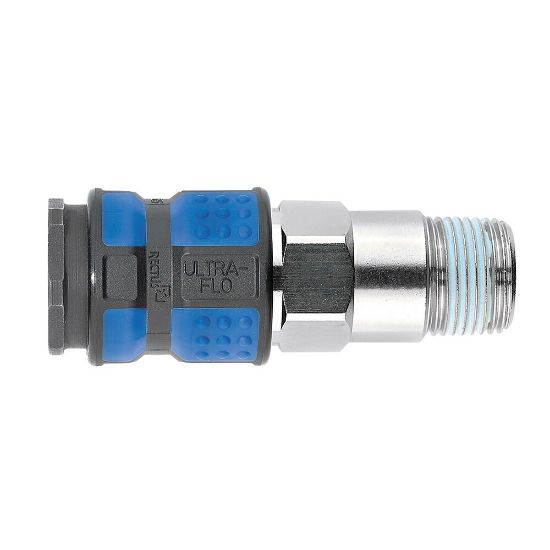

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1625KAAK21SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1625KAAK21SPN
SKU: 1625KAAK21SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 1625KAAK21SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	Steel
Seal Material	NBR	For Fluid Type	Compressed Air
Application	General Industrial	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	Technology	Pneumatics
Hex Size	22 mm	Outside Diameter	26 mm
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Weight	0.095 kg	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Length	59.5 mm	Diameter	7.8 mm (nominal)
Function	Single Shut-Off	Flow Rate	2020 L/min (air)
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Product Series	Series 1625	Connection Size	R 1/2
Sleeve Material	Technical polymer	Interchange Type	European Profile
Materials of Construction	Steel	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Male, BSPT
