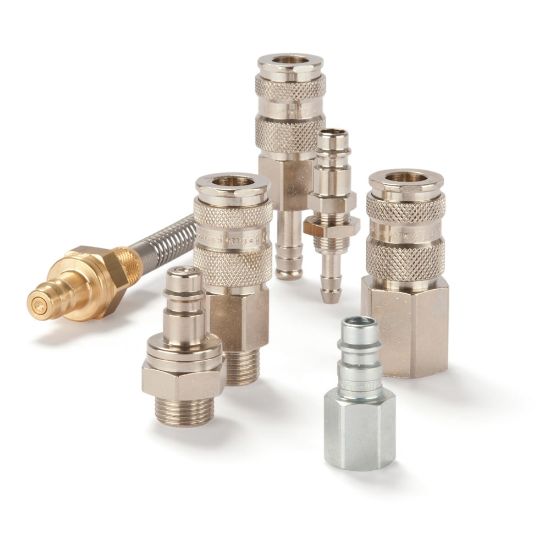

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KETP13SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KETP13SPN
SKU: 1600KETP13SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 1600KETP13SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Body Material	Steel
Seal Material	NBR	For Fluid Type	Compressed Air
Shape	Straight	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
Technology	Pneumatics	Region of Origin	Germany
Connection Type	Parker Push-Lok Hose	Specifications Met	ATEX
Application	Mobile & Defence	Product Style	Quick-Connect
Weight	0.1255 kg	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 12 bar	Brand	Rectus
Length	30 to 155 mm	Diameter	7.8 mm (nominal)
Function	Self-Venting System	Hex Size	13 to 24 mm
Flow Rate	2020 L/min (air)	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Product Series	Series 1600 - Safety
Connection Size	13 mm	Sleeve Material	Steel
Interchange Type	European Profile
Materials of Construction	Steel	Version	Self-Venting System
Coupling Half	Coupler	Connection Size	13 mm
Connection Type	Parker Hose Barb
