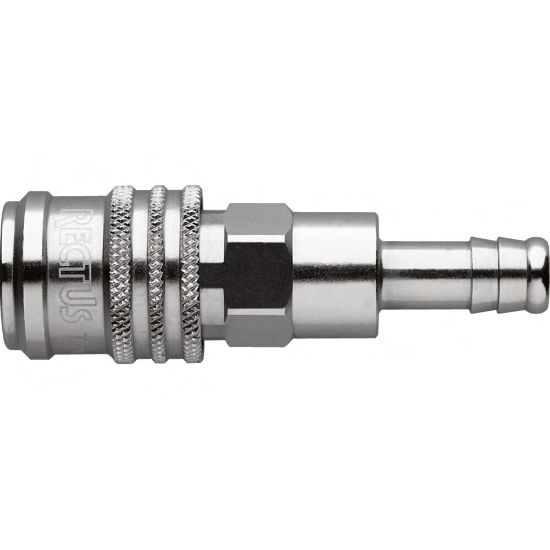

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KETF06SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KETF06SPN
SKU: 1600KETF06SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 1600KETF06SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Weight	0.117 kg
Body Material	Steel	Seal Material	NBR
Shape	Straight	Minimum Operating Temperature	-4 °F
Valve Included	Yes	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	For Fluid Type	Air
Technology	Pneumatics	Industry	General Industrial
Hex Size	19 mm	Outside Diameter	26 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ISO 4414	Application	Air & Gas Compressor
Product Style	Quick-Connect	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 12 bar	Brand	Rectus
Length	79.5 mm	Diameter	7.8 mm (nominal)
Function	Self-Venting System	Flow Rate	2020 L/min (air)
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Product Series	Series 1600 - Safety	Connection Size	6 mm
Sleeve Material	Steel	Interchange Type	European Profile
Materials of Construction	Steel	Connection Type	Hose Barb
Version	Self-Venting System	Coupling Half	Coupler
Connection Size	6 mm
