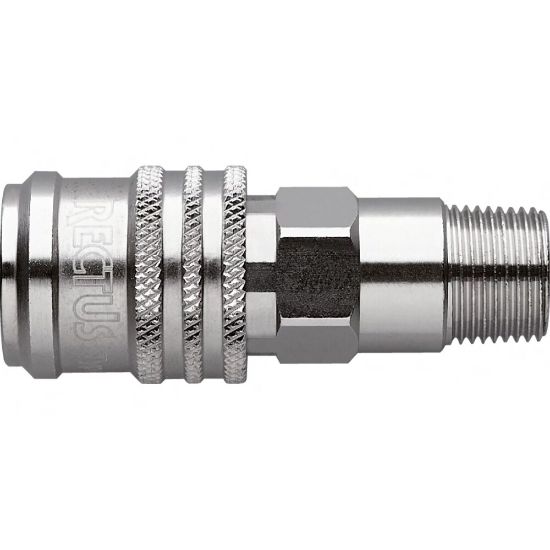

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KEAK13SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KEAK13SPN
SKU: 1600KEAK13SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 1600KEAK13SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Body Material	Steel	Seal Material	NBR
For Fluid Type	Compressed Air	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	Technology	Pneumatics
Connection Type	BSPT	Industry	General Industrial
Hex Size	19 mm	Outside Diameter	26 mm
Region of Origin	Germany	Specifications Met	ATEX
Application	Air & Gas Compressor	Product Style	Quick-Connect
Weight	0.1142 kg	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 174 psi	Brand	Rectus
Length	64.5 mm	Diameter	7.8 mm (nominal)
Function	Self-Venting System	Flow Rate	2020 L/min (air)
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Product Series	Series 1600 - Safety	Connection Size	R 1/4
Sleeve Material	Steel	Interchange Type	European Profile
Materials of Construction	Steel	Version	Self-Venting System
Coupling Half	Coupler	Connection Size	1/4"
Connection Type	Male, BSPT
