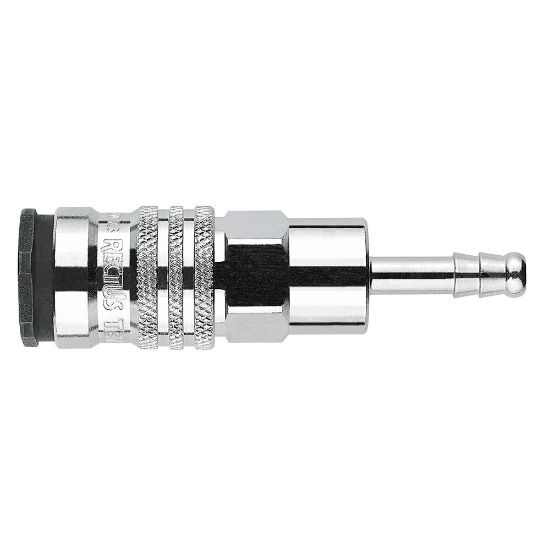

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KATF08SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KATF08SPN
SKU: 1600KATF08SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 1600KATF08SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Weight	0.107 kg
Body Material	Steel	Seal Material	NBR
Brand	Parker	Shape	Straight
Minimum Operating Temperature	-4 °F	Valve Included	Yes
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
For Fluid Type	Air	Technology	Pneumatics
Industry	General Industrial	Outside Diameter	23 mm
Hex Size	19 mm	Length	80 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Application	Air & Gas Compressor
Product Style	Quick-Connect	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 507 psi	Diameter	7.8 mm (nominal)
Function	Single Shut-Off	Flow Rate	2020 L/min (air)
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Product Series	Series 1600	Connection Size	8 mm
Sleeve Material	Steel	Interchange Type	European Profile
Materials of Construction	Steel	Connection Type	Hose Barb
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	8 mm
