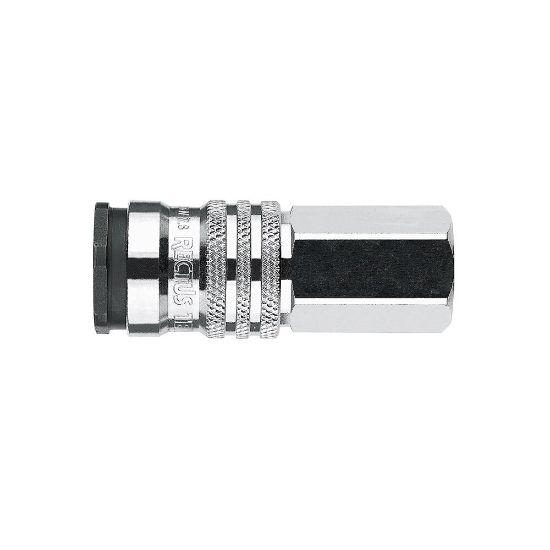

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KAIW13SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KAIW13SPN
SKU: 1600KAIW13SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 1600KAIW13SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Body Material	Steel	Seal Material	NBR
Specifications Met	RoHS	Shape	Straight
Connection Size	G 1/4	Valve Included	Yes
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
For Fluid Type	Air	Technology	Pneumatics
Industry	General Industrial	Outside Diameter	23 mm
Length	59 mm	Hex Size	19 mm
Region of Origin	Germany	Connection Type	Female
Application	Mobile & Defence	Product Style	Quick-Connect
Weight	0.1077 kg	Compatible Fitting	Series 25 Plug
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Diameter	7.8 mm (nominal)	Function	Single Shut-Off
Flow Rate	2020 L/min (air)	Valve Type	Ultra High Flow Valve
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Product Series	Series 1600
Sleeve Material	Steel	Interchange Type	European Profile
Materials of Construction	Steel	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	1/4"
Connection Type	Female, BSPP
