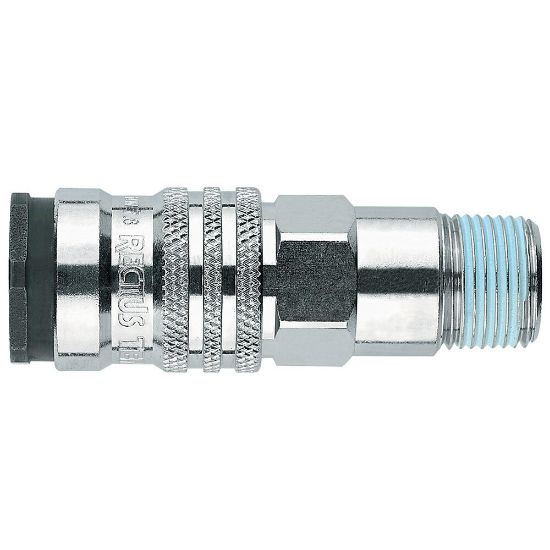

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KAAK21SPN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 1600KAAK21SPN
SKU: 1600KAAK21SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 1600KAAK21SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Body Material	Steel
Seal Material	NBR	For Fluid Type	Compressed Air
Brand	Parker	Application	General Industrial
Shape	Straight	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
Technology	Pneumatics	Outside Diameter	23 mm
Hex Size	22 mm	Region of Origin	Germany
Connection Type	Male	Specifications Met	ATEX
Product Style	Quick-Connect	Weight	0.1126 kg
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 35 bar
Length	59.5 mm	Diameter	7.8 mm (nominal)
Function	Single Shut-Off	Flow Rate	2020 L/min (air)
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Product Series	Series 1600	Connection Size	R 1/2
Sleeve Material	Steel	Interchange Type	European Profile
Materials of Construction	Steel	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Male, BSPT
