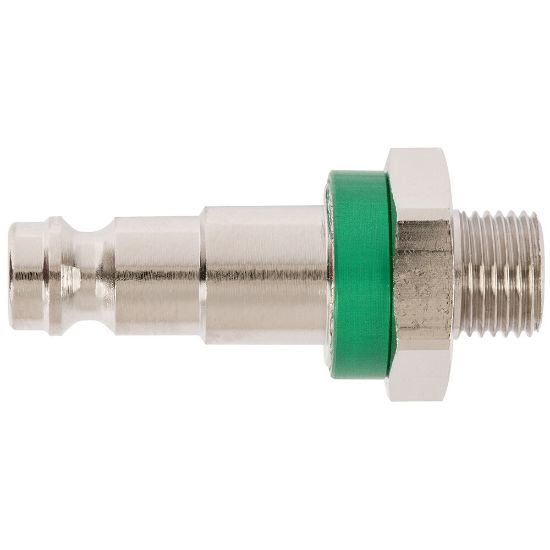

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Coded Quick Coupling, Series 21 - 21SFAW13MXN0

Name: Coded Quick Coupling, Series 21 - 21SFAW13MXN0
SKU: 21SFAW13MXN0
Availability: OutOfStock

Coded industrial quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 21. Available made of brass.

Availability:

Backordered

SKU: 21SFAW13MXN0

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Minimum Operating Temperature	-40 °F	Shape	Straight
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Outside Diameter	n/a	Technology	Fluid & Gas Handling
Connection Size	1/4 inch	Hex Size	17 mm
Region of Origin	Germany	Flow Rate	560 L/min
Connection Type	Male	Product Style	Quick-Connect
Brand	Rectus	Plating Type	Nickel-plated
Operation Type	Sleeve	Interchange Type	European Profile
Function	Straight-Through	Valve Type	Without Valve
Coupling Half	Plug	Product Type	Quick Couplings Pneumatic
Diameter	5.0	Product Series	Series 21
Compatible Fitting	Series 21 Coupler	Maximum Operating Pressure	Depends on the Choosen Associated Coupler
Length	41.5 mm
Type	Plug	Hose I.D.	n/a
Materials of Construction	Brass, Nickel-plated	Connection Thread Size	1/4"
Connection Type	Male Thread - parallel	Color	green - 0

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
