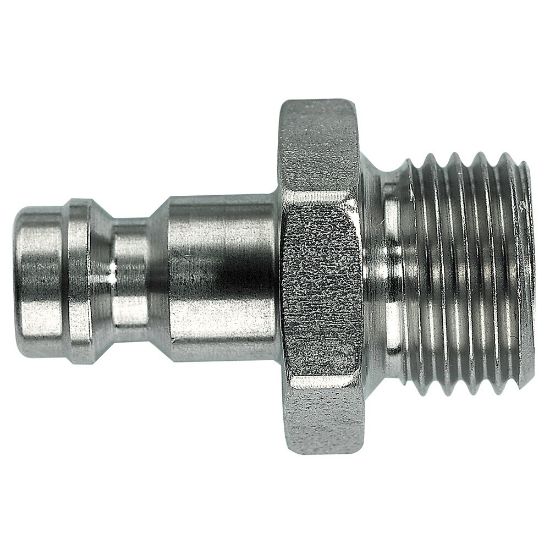

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Coded Quick Coupling, Series 21 - 21SFAW10RXX6

Name: Coded Quick Coupling, Series 21 - 21SFAW10RXX6
SKU: 21SFAW10RXX6
Availability: OutOfStock

Coded industrial quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 21. Available made of brass.

Availability:

Backordered

SKU: 21SFAW10RXX6

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Seal Material	n/a	Maximum Operating Pressure	35 bar
Valve Included	No	Outside Diameter	n/a
Maximum Operating Temperature	200 °C	Hex Size	17 mm
Flow Rate	560 L/min	Function	Single Shut-Off
Length	39.5 mm	Diameter	5 mm (nominal)
Type	Plug	Hose I.D.	n/a
Connection Thread Size	1/8"	Connection Type	Male Thread - parallel
Materials of Construction	Stainless Steel AISI 303	Color	blue - 6

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK

Compliance, Certifications & Safety
