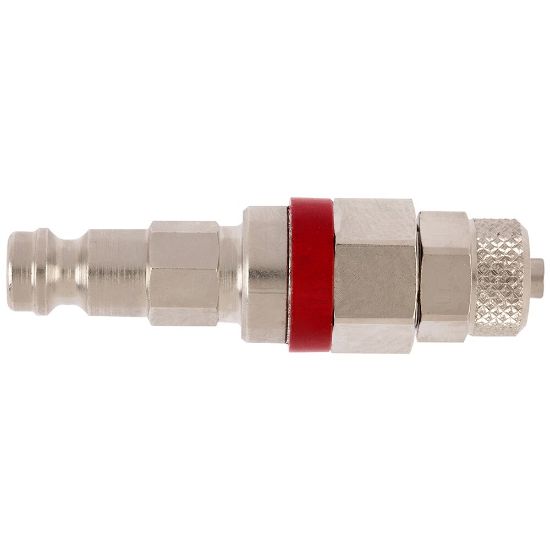

Coded Quick Coupling, Series 21 - 21SBKO08MPN8

Name: Coded Quick Coupling, Series 21 - 21SBKO08MPN8
SKU: 21SBKO08MPN8
Availability: OutOfStock

Coded industrial quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 21. Available made of brass.

Availability:

Backordered

SKU: 21SBKO08MPN8

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Valve Included	Yes	Maximum Operating Temperature	120 °C
Maximum Operating Pressure	8 bar	Hex Size	17 mm
Length	53 mm	Function	Double Shut-Off
Diameter	5 mm (nominal)	Outside Diameter	21 mm
Flow Rate	310 L/min	Seal Material	NBR or FKM
Type	Plug	Connection Thread Size	n/a
Materials of Construction	Brass, Nickel-plated	Connection Type	With Plastic Hose Connection
Color	red - 8	Hose I.D.	6x8 mm

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
