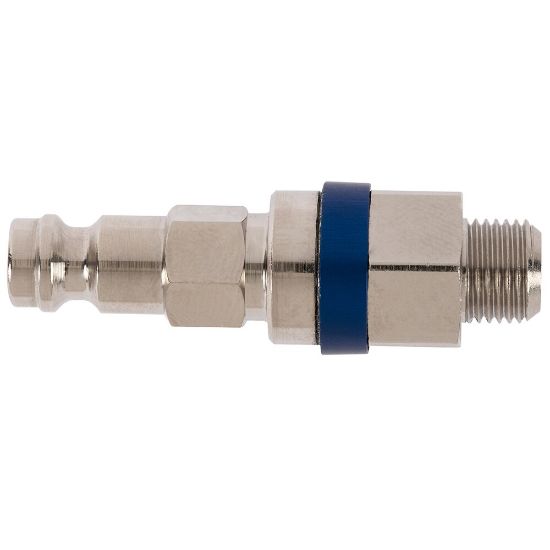

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Coded Quick Coupling, Series 21 - 21SBAW13MPN0

Name: Coded Quick Coupling, Series 21 - 21SBAW13MPN0
SKU: 21SBAW13MPN0
Availability: OutOfStock

Coded industrial quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 21. Available made of brass.

Availability:

Backordered

SKU: 21SBAW13MPN0

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Seal Material	NBR	Brand	Parker
Shape	Straight	Minimum Operating Temperature	-4 °F
Technology	Pneumatics	Connection Size	1/4 inch
Length	50 mm	Hex Size	17 mm
Outside Diameter	n/a mm	Region of Origin	Germany
Connection Type	Male	Product Style	Quick-Connect
Plating Type	Nickel-plated	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Valve Type	Standard Valve	Coupling Half	Plug
Product Type	Quick Couplings Pneumatic	Diameter	5.0
Product Series	Series 21	Maximum Operating Temperature	up to 212 °F
Flow Rate	310 L/min	Compatible Fitting	Series 21 Coupler
Maximum Operating Pressure	Depends on the Choosen Associated Coupler
Type	Plug	Hose I.D.	n/a
Materials of Construction	Brass, Nickel-plated	Connection Type	Male Thread
Color	green - 0
