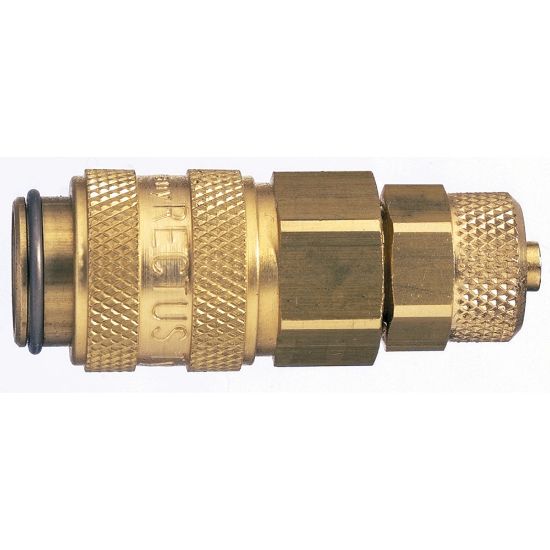

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Coded Quick Coupling, Series 21 - 21KBKO08RVX6

Name: Coded Quick Coupling, Series 21 - 21KBKO08RVX6
SKU: 21KBKO08RVX6
Availability: OutOfStock

Coded industrial quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 21. Available made of brass.

Availability:

Backordered

SKU: 21KBKO08RVX6

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Minimum Operating Temperature	-15 °C	Brand	Parker
Shape	Straight	Coupling Half	Coupler
Technology	Fluid & Gas Handling	Length	47 mm
Outside Diameter	16 mm	Hex Size	17 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Plating Type	Without Surface Treatment	Product Type	Quick Couplings Pneumatic
Diameter	5.0	Product Series	Series 21
Compatible Fitting	Series 21 Plug	Body Material	Stainless Steel AISI 303
Seal Material	FKM/FPM	Maximum Operating Temperature	up to 392 °F
Connection Size	6 x 8 mm	Connection Type	Tube
Flow Rate	310 L/min
Type	Coupling	Connection Thread Size	n/a
Connection Type	With Plastic Hose Connection	Materials of Construction	Stainless Steel AISI 303
Color	blue - 6	Hose I.D.	6x8 mm

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
