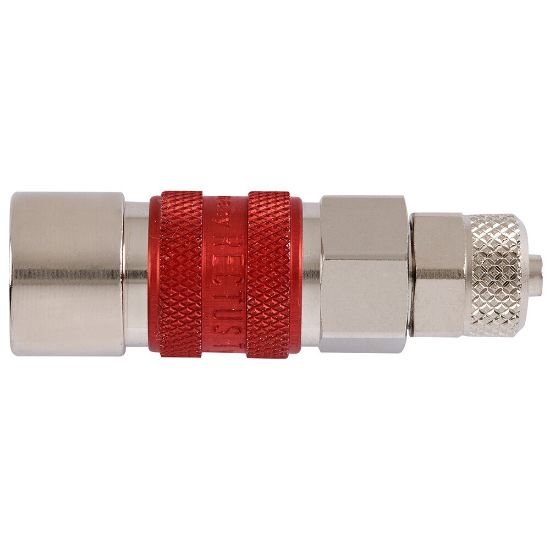

Coded Quick Coupling, Series 21 - 21KAKO06MPX6

Name: Coded Quick Coupling, Series 21 - 21KAKO06MPX6
SKU: 21KAKO06MPX6
Availability: OutOfStock

Coded industrial quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 21. Available made of brass.

Availability:

Backordered

SKU: 21KAKO06MPX6

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Seal Material	NBR	Brand	Parker
Shape	Straight	Minimum Operating Temperature	-4 °F
Coupling Half	Coupler	Technology	Fluid & Gas Handling
Outside Diameter	16 mm	Hex Size	14 mm
Length	51 mm	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Function	Single Shut-Off	Operation Type	Sleeve
Interchange Type	European Profile	Valve Type	Standard Valve
Plating Type	Without Surface Treatment	Product Type	Quick Couplings Pneumatic
Diameter	5.0	Product Series	Series 21
Compatible Fitting	Series 21 Plug	Maximum Operating Temperature	up to 212 °F
Maximum Flow Rate	550	Connection Size	4 x 6 mm
Connection Type	Tube
Type	Coupling	Connection Thread Size	n/a
Materials of Construction	Brass	Hose I.D.	4x6 mm
Connection Type	With Plastic Hose Connection	Color	blue - 6

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
