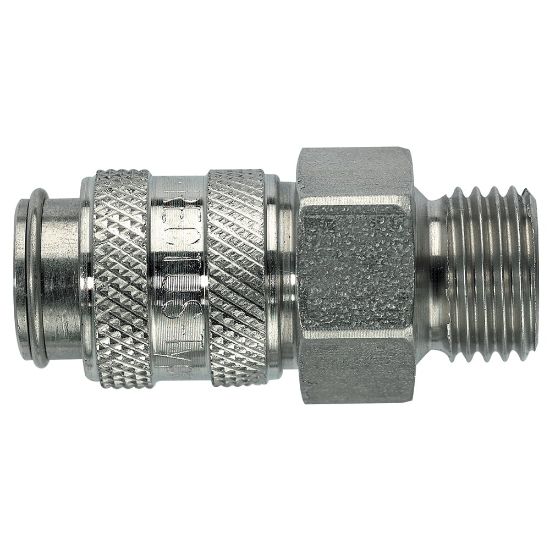

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Coded Quick Coupling, Series 21 - 21KAAW13MVN0

Name: Coded Quick Coupling, Series 21 - 21KAAW13MVN0
SKU: 21KAAW13MVN0
Availability: OutOfStock

Coded industrial quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 21. Available made of brass.

Availability:

Backordered

SKU: 21KAAW13MVN0

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Brand	Parker	Shape	Straight
Coupling Half	Coupler	Connection Type	BSPP
Technology	Pneumatics	Minimum Operating Temperature	5 °F
Connection Size	1/4 inch	Length	47 mm
Outside Diameter	16 mm	Hex Size	17 mm
Region of Origin	Germany	Flow Rate	560 L/min
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Function	Single Shut-Off	Plating Type	Nickel-plated
Operation Type	Sleeve	Interchange Type	European Profile
Valve Type	Standard Valve	Product Type	Quick Couplings Pneumatic
Diameter	5.0	Product Series	Series 21
Compatible Fitting	Series 21 Plug	Seal Material	FKM/FPM
Maximum Operating Temperature	up to 392 °F
Type	Coupling	Hose I.D.	n/a
Materials of Construction	Brass, Nickel-plated	Connection Thread Size	1/4"
Connection Type	Male Thread - parallel	Color	green - 0
