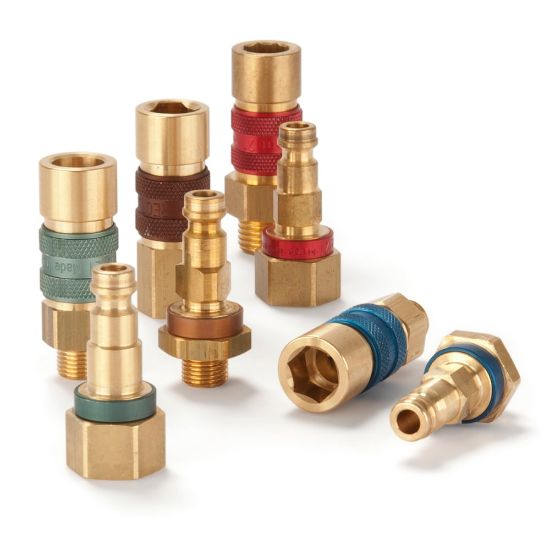

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Coded Quick Coupling, Series 21 - 21KAAW10RVX3

Name: Coded Quick Coupling, Series 21 - 21KAAW10RVX3
SKU: 21KAAW10RVX3
Availability: OutOfStock

Coded industrial quick coupling system with nominal diameter 5 for pneumatic and fluid handling applications up to 35 bar. Coupling system developed on the basis of Parker Series 21. Available made of brass.

Availability:

Backordered

SKU: 21KAAW10RVX3

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Minimum Operating Temperature	-15 °C	Shape	Straight
Coupling Half	Coupler	Connection Type	BSPP
Technology	Fluid & Gas Handling	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Function	Single Shut-Off
Operation Type	Sleeve	Interchange Type	European Profile
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Connection Size	1/8 inch	Product Type	Quick Couplings Pneumatic
Diameter	5.0	Product Series	Series 21
Compatible Fitting	Series 21 Plug	Body Material	Stainless Steel AISI 303
Seal Material	FKM/FPM	Maximum Operating Temperature	up to 392 °F
Maximum Flow Rate	550
Type	Coupling	Hose I.D.	n/a
Connection Thread Size	1/8"	Connection Type	Male Thread - parallel
Materials of Construction	Stainless Steel AISI 303	Color	brown - 3

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
