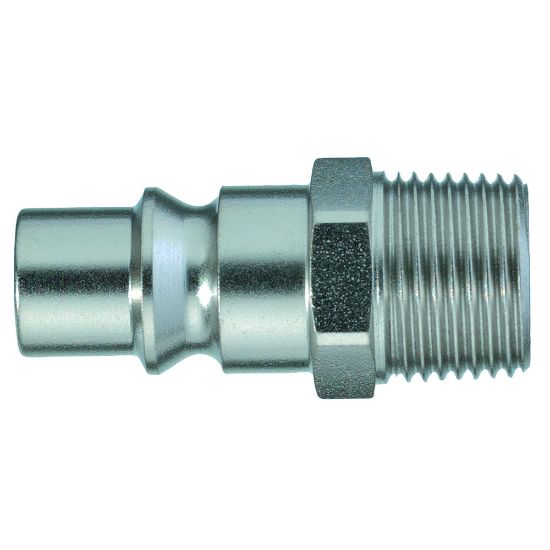

Quick Coupling with Parker own Profile, Series 40 - 40SFAK26SXN

Name: Quick Coupling with Parker own Profile, Series 40 - 40SFAK26SXN
SKU: 40SFAK26SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 9 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 40SFAK26SXN

Qty:

Products specifications

Attribute name	Attribute value
Hex Size	16 mm	Length	51 mm
Maximum Operating Pressure	35 bar	Maximum Operating Temperature	100 °C
Division	Low Pressure Connectors Europe Division	Flow Rate	1200 L/min
Valve Included	No	Seal Material	na
Version	Single Shut-Off	Outside Diameter	na
Minimum Operating Temperature	-20 °C	Diameter	9 nom
Connection Type	Male Thread - tapered	Connection Thread Size (inch)	3/4
Type	Plug	Material	Steel nickel plated
Hose I.D.	na
