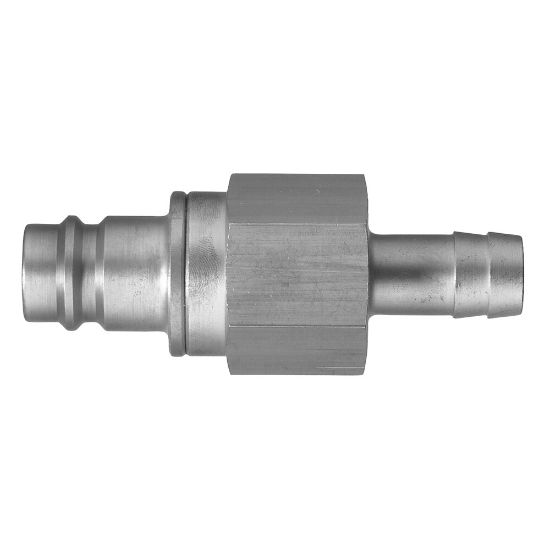

Quick Coupling with Parker own Profile, Series 39 - 39SLTF25MPN

Name: Quick Coupling with Parker own Profile, Series 39 - 39SLTF25MPN
SKU: 39SLTF25MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 19 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 39SLTF25MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Valve Included	Yes	Outside Diameter	n/a
Maximum Operating Pressure	8 bar	Hex Size	41 mm
Length	124 mm	Diameter	7 nom
Flow Rate	33 L/min
Type	Plug	Connection Type	Hose Barb
Connection Thread Size (inch)	na	Material	Brass nickel plated
Hose I.D.	25	Version	Dry-Break
