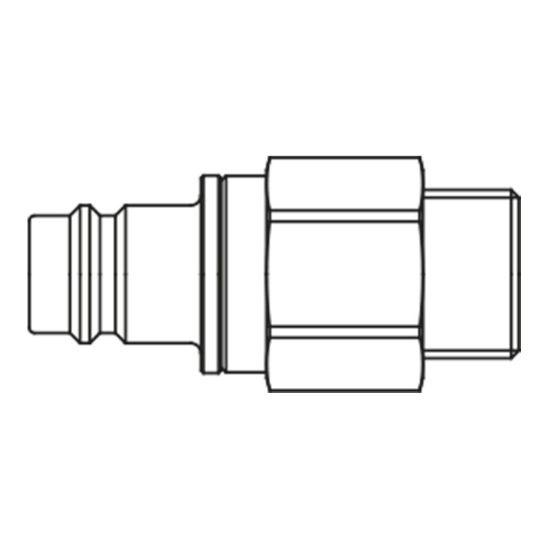

Quick Coupling with Parker own Profile, Series 39 - 39SLAW33MVX

Name: Quick Coupling with Parker own Profile, Series 39 - 39SLAW33MVX
SKU: 39SLAW33MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 19 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 39SLAW33MVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Valve Included	Yes	Outside Diameter	n/a
Seal Material	FKM	Maximum Operating Temperature	200 °C
Maximum Operating Pressure	8 bar	Hex Size	41 mm
Length	95 mm	Diameter	19 nom
Flow Rate	33 (Water) L/min
Type	Plug	Material	Brass
Connection Type	Male Thread	Hose I.D.	na
Version	Dry-Break	Connection Thread Size (inch)	G1
