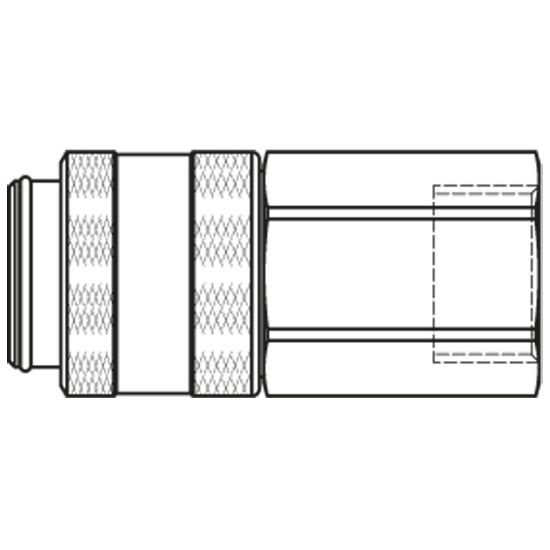

Quick Coupling with Parker own Profile, Series 39 - 39KBIW33MVX

Name: Quick Coupling with Parker own Profile, Series 39 - 39KBIW33MVX
SKU: 39KBIW33MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 19 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 39KBIW33MVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Maximum Operating Pressure	35 bar	Valve Included	Yes
Seal Material	FKM	Maximum Operating Temperature	200 °C
Hex Size	41 mm	Outside Diameter	46 mm
Length	100 mm	Diameter	19 nom
Flow Rate	33 L/min (Water)
Type	Coupling	Material	Brass
Hose I.D.	na	Connection Type	Female Thread - parallel
Version	Double Shut-Off	Connection Thread Size (inch)	G1
