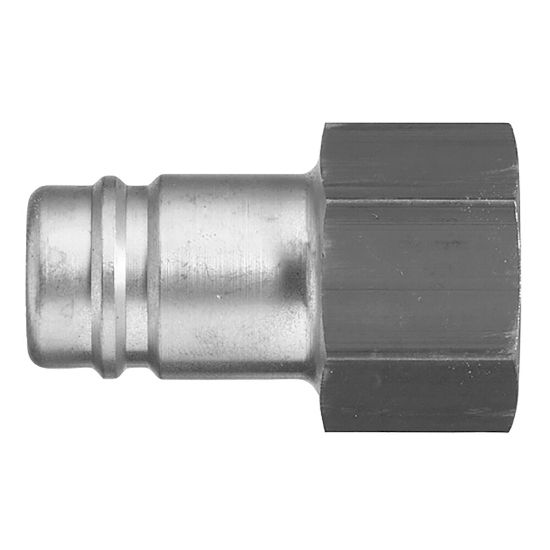

Quick Coupling with Parker own Profile, Series 38 - 38SFIW21MXX

Name: Quick Coupling with Parker own Profile, Series 38 - 38SFIW21MXX
SKU: 38SFIW21MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 15 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 38SFIW21MXX

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-20 °C	Outside Diameter	n/a
Hex Size	24 mm	Diameter	15 nom
Maximum Operating Pressure	35 bar	Flow Rate	7500 L/min
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Valve Included	No	Seal Material	NBR
Length	49 mm
Hose I.D.	na	Version	Single Shut-Off
Type	Plug	Connection Type	Female Thread - parallel
Connection Thread Size (inch)	1/2	Material	Brass
