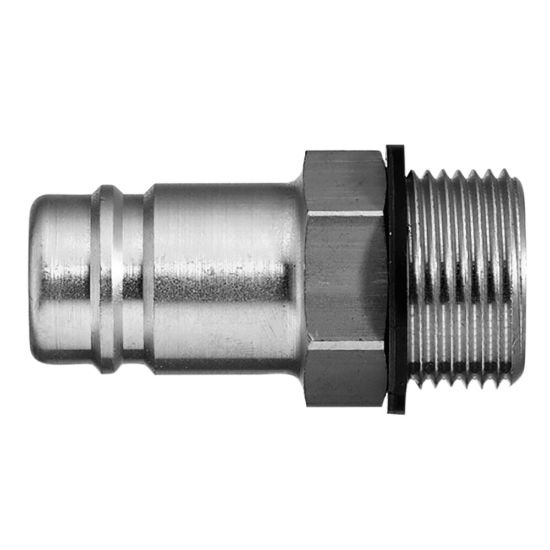

Quick Coupling with Parker own Profile, Series 38 - 38SFAW21MXN

Name: Quick Coupling with Parker own Profile, Series 38 - 38SFAW21MXN
SKU: 38SFAW21MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 15 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 38SFAW21MXN

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	n/a	Minimum Operating Temperature	-20 °C
Hex Size	24 mm	Length	54 mm
Flow Rate	7500 L/min	Diameter	15 nom
Maximum Operating Pressure	35 bar	Seal Material	NBR
Valve Included	No	Maximum Operating Temperature	100 °C
Division	Low Pressure Connectors Europe Division
Hose I.D.	na	Version	Single Shut-Off
Type	Plug	Connection Type	Male Thread - parallel
Connection Thread Size (inch)	1/2	Material	Brass nickel plated
