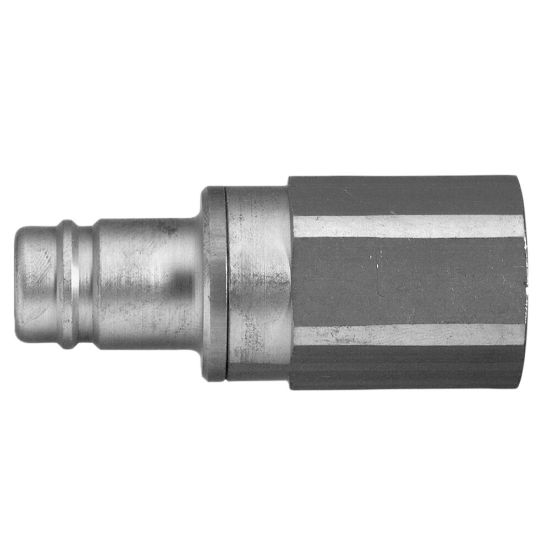

Quick Coupling with Parker own Profile, Series 38 - 38SBIW26MPX

Name: Quick Coupling with Parker own Profile, Series 38 - 38SBIW26MPX
SKU: 38SBIW26MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 15 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 38SBIW26MPX

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Flow Rate	2150 L/min
Division	Low Pressure Connectors Europe Division	Length	87 mm
Seal Material	NBR	Valve Included	Yes
Hex Size	34 mm	Minimum Operating Temperature	-20 °C
Outside Diameter	n/a	Maximum Operating Pressure	35 bar
Diameter	15 nom
Type	Plug	Version	Double Shut-Off
Material	Brass	Connection Thread Size (inch)	3/4
Hose I.D.	na	Connection Type	Female Thread - parallel
