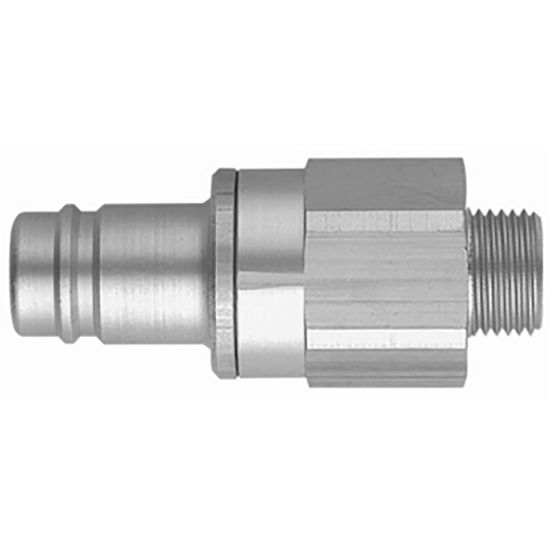

Quick Coupling with Parker own Profile, Series 38 - 38SBAW26MPX

Name: Quick Coupling with Parker own Profile, Series 38 - 38SBAW26MPX
SKU: 38SBAW26MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 15 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 38SBAW26MPX

Qty:

Products specifications

Attribute name	Attribute value
Valve Included	Yes	Minimum Operating Temperature	-20 °C
Outside Diameter	n/a	Maximum Operating Pressure	35 bar
Diameter	15 nom	Flow Rate	2150 L/min
Maximum Operating Temperature	100 °C	Division	Low Pressure Connectors Europe Division
Length	87 mm	Hex Size	34 mm
Seal Material	NBR
Hose I.D.	na	Type	Plug
Version	Double Shut-Off	Material	Brass
Connection Type	Male Thread - parallel	Connection Thread Size (inch)	3/4
