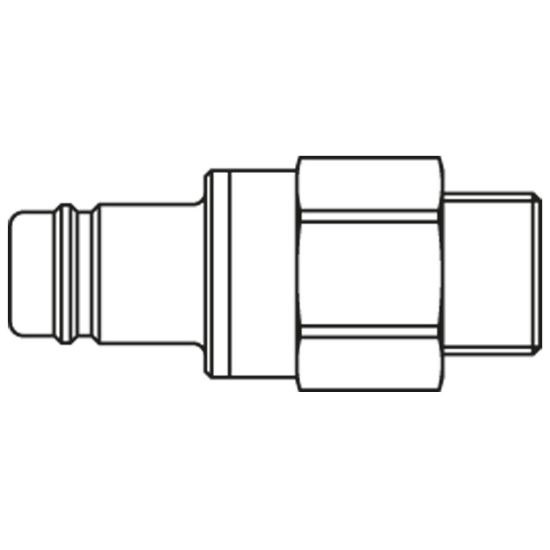

Quick Coupling with Parker own Profile, Series 38 - 38SBAW21MEX

Name: Quick Coupling with Parker own Profile, Series 38 - 38SBAW21MEX
SKU: 38SBAW21MEX
Availability: OutOfStock

Quick coupling system with nominal diameter 15 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 38SBAW21MEX

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	EPDM	Outside Diameter	n/a
Valve Included	Yes	Maximum Operating Temperature	150 °C
Length	85 mm	Hex Size	34 mm
Diameter	15 nom	Maximum Operating Pressure	35 bar
Minimum Operating Temperature	-40 °C	Flow Rate	2.150 L/min (Air)
Division	Low Pressure Connectors Europe Division
Material	Brass	Connection Thread Size (inch)	1/2
Connection Type	Male Thread - parallel	Hose I.D.	na
Version	Double Shut-Off	Type	Plug
