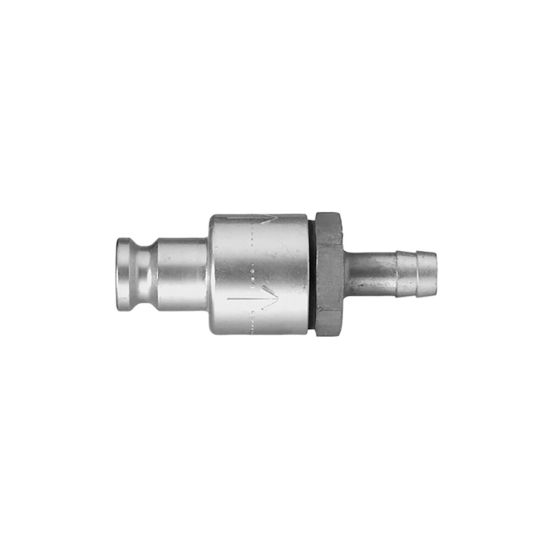

Quick Coupling with Parker own Profile, Series 29 - 29SRTF19SPZ

Name: Quick Coupling with Parker own Profile, Series 29 - 29SRTF19SPZ
SKU: 29SRTF19SPZ
Availability: OutOfStock

Quick coupling system with nominal diameter 13 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of Steel zinc plated.

Availability:

Backordered

SKU: 29SRTF19SPZ

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Division	Low Pressure Connectors Europe Division
Materials of Construction	Steel zinc plated	Length	101 mm
Seal Material	NBR	Flow Rate	2550 L/min
Maximum Operating Pressure	35 bar	Diameter	13 nom
Hex Size	32 mm	Minimum Operating Temperature	-20 °C
Outside Diameter	n/a	Version	Single Shut-Off
Valve Included	No
Type	Plug	Connection Thread Size (inch)	na
Connection Type	Recoil Eliminator, with Hose Barb	Hose I.D.	19
