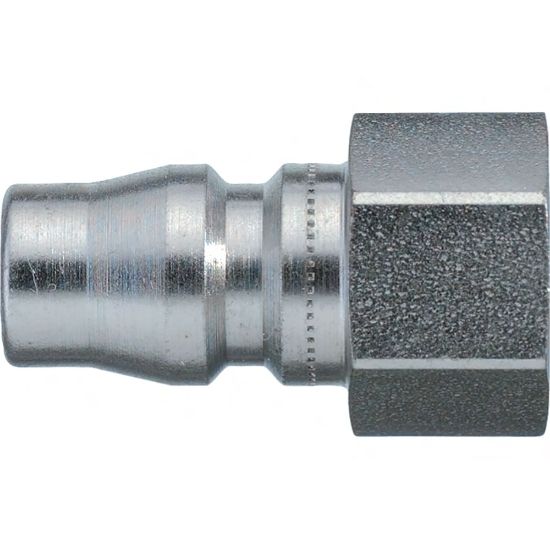

Quick Coupling with Japanese Industrial Profile, Series 13 - 13SFIW21SXN

Name: Quick Coupling with Japanese Industrial Profile, Series 13 - 13SFIW21SXN
SKU: 13SFIW21SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Japanese industrial profile. Available made of brass.

Availability:

Backordered

SKU: 13SFIW21SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Seal Material	na	Version	Single Shut-Off
Valve Included	No	Maximum Operating Pressure	15 bar
Maximum Operating Temperature	200 °C	Outside Diameter	na
Hex Size	24 mm	Flow Rate	1150 L/min
Length	35 mm	Diameter	7.5 nom
Type	Plug	Hose I.D.	na
Connection Type	Female Thread - parallel	Connection Thread Size (inch)	1/2
Material	Steel nickel plated
