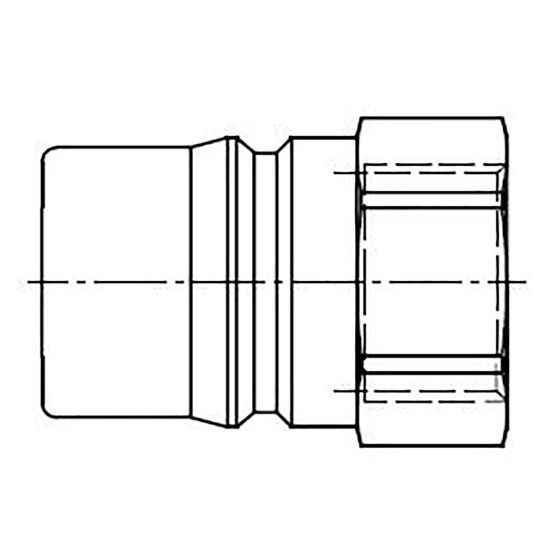

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 76SFIW33MXX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 76SFIW33MXX
SKU: 76SFIW33MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 76SFIW33MXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Valve Included	No	Outside Diameter	na
Hex Size	41 mm	Length	65 mm
Maximum Operating Pressure	100 bar	Version	Straight-Through
Flow Rate	7500 L/min	Application	Pneumatic & Fluid Handling
Body Size	1 inch
Type	Plug	Material	Brass
Connection Type	Female Thread - parallel	Connection Thread Size	1
