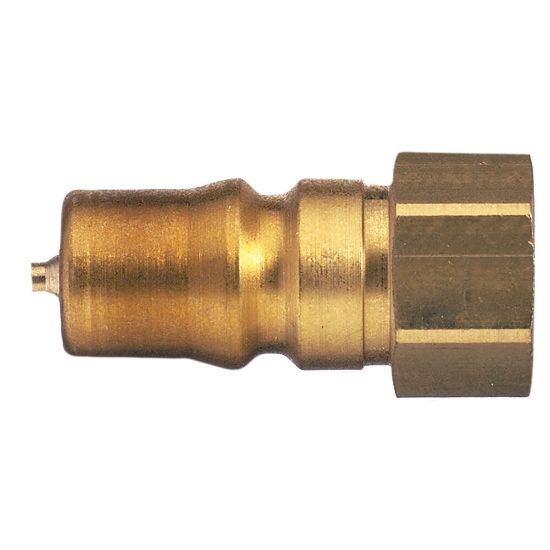

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 76SBIW33MVX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 76SBIW33MVX
SKU: 76SBIW33MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 76SBIW33MVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Valve Included	Yes	Seal Material	FKM
Maximum Operating Temperature	200 °C	Outside Diameter	na
Hex Size	41 mm	Length	65 mm
Maximum Operating Pressure	100 bar	Version	Double Shut-Off
Flow Rate	7500 L/min	Application	Pneumatic & Fluid Handling
Body Size	1 inch
Type	Plug	Material	Brass
Connection Type	Female Thread - parallel	Connection Thread Size	1
