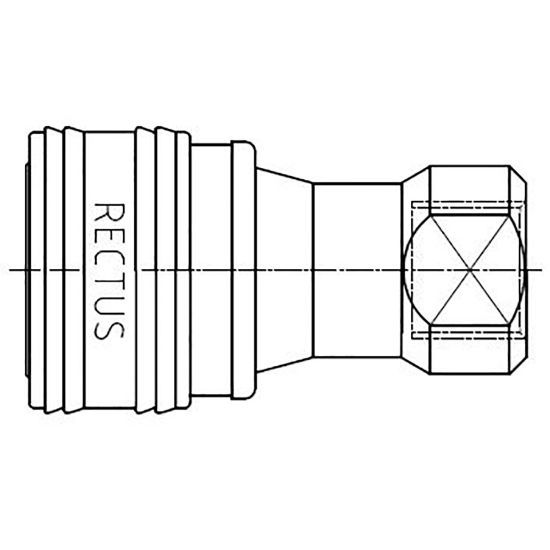

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 75KFIW26MVX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 75KFIW26MVX
SKU: 75KFIW26MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 75KFIW26MVX

Qty:

Products specifications

Attribute name	Attribute value
Application	Pneumatic & Fluid Handling	Valve Included	No
Length	96 mm	Minimum Operating Temperature	-15 °C
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	200 °C
Seal Material	FKM	Maximum Operating Pressure	100 bar
Outside Diameter	55 mm	Hex Size	34 mm
Body Size	3/4 inch	Version	Straight-Through
Flow Rate	>4500 L/min
Connection Type	Female Thread - parallel	Connection Thread Size	3/4
Type	Coupling	Material	Brass
