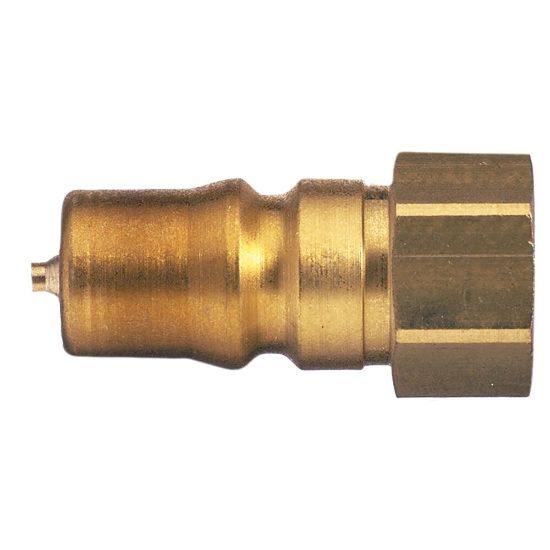

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 75KBIW26EPX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 75KBIW26EPX
SKU: 75KBIW26EPX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 75KBIW26EPX

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	55 mm	Hex Size	34 mm
Flow Rate	79 L/min	Seal Material	NBR
Length	96 mm	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C	Body Size	G 3/4
Application	Pneumatics	Version	Double Shut-Off
Maximum Operating Pressure	100 bar	Minimum Operating Temperature	-20 °C
Valve Included	Yes
Type	Coupling	Connection Type	Female BSPP
Connection Thread Size	G 3/4	Material	Stainless Steel 316 L
