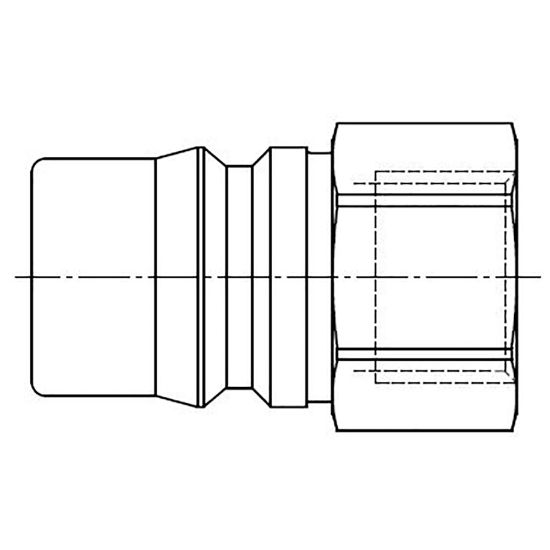

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 74SFIW21MXX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 74SFIW21MXX
SKU: 74SFIW21MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 74SFIW21MXX

Qty:

Products specifications

Attribute name	Attribute value
Hex Size	27 mm	Seal Material	na
Body Size	1/2 inch	Outside Diameter	na
Version	Straight-Through	Maximum Operating Pressure	150 bar
Valve Included	No	Application	Pneumatic & Fluid Handling
Length	48 mm	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-15 °C	Division	Low Pressure Connectors Europe Division
Flow Rate	1950 L/min
Connection Thread Size	1/2	Connection Type	Female Thread - parallel
Material	Brass	Type	Plug
