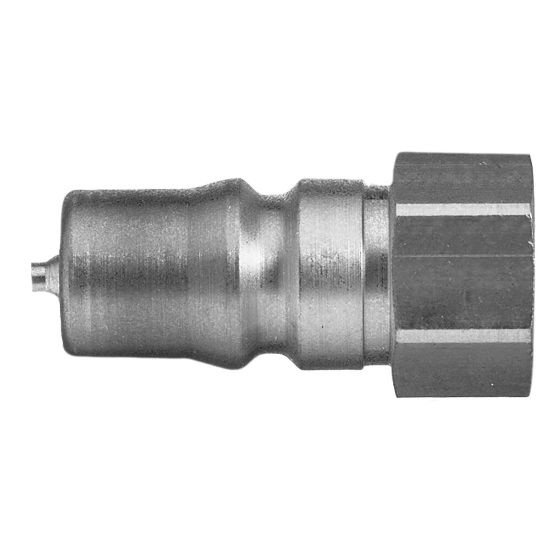

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 74SBIW21MVX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 74SBIW21MVX
SKU: 74SBIW21MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 74SBIW21MVX

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-20 °C	Valve Included	Yes
Body Size	1/2 inch	Maximum Operating Pressure	150 bar
Application	Pneumatic & Fluid Handling	Length	48 mm
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	200 °C
Hex Size	27 mm	Flow Rate	1950 L/min
Version	Double Shut-Off	Seal Material	FKM
Outside Diameter	na mm
Material	Brass	Type	Plug
Connection Thread Size	1/2	Connection Type	Female Thread - parallel
