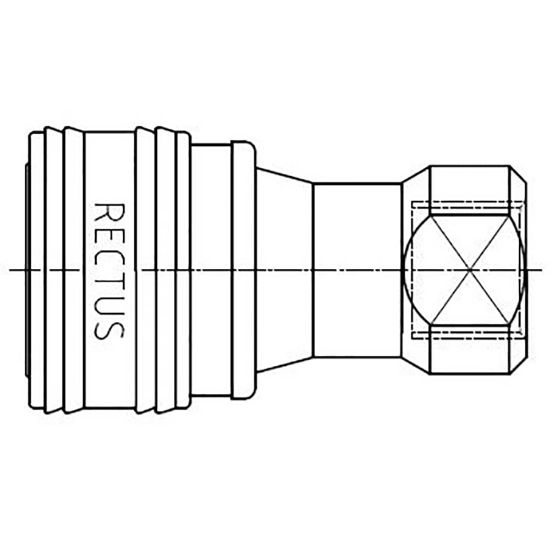

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 74KFIW21MPX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 74KFIW21MPX
SKU: 74KFIW21MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 74KFIW21MPX

Qty:

Products specifications

Attribute name	Attribute value
Length	76 mm	Hex Size	27 mm
Flow Rate	1950 L/min	Minimum Operating Temperature	-20 °C
Body Size	1/2 inch	Maximum Operating Pressure	150 bar
Version	Straight Through	Valve Included	No
Outside Diameter	44,5 mm	Seal Material	NBR
Application	Pneumatic & Fluid Handling	Maximum Operating Temperature	100 °C
Division	Low Pressure Connectors Europe Division
Connection Type	Female Thread - parallel	Connection Thread Size	1/2
Type	Coupling	Material	Brass
