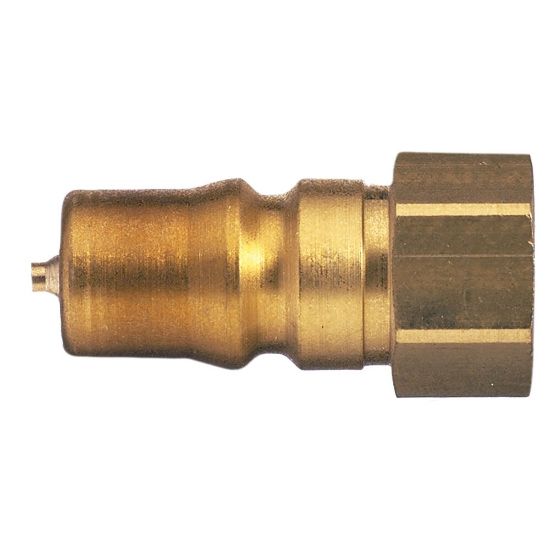

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 73SBIW17MVX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 73SBIW17MVX
SKU: 73SBIW17MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 73SBIW17MVX

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	200 °C	Flow Rate	1280 L/min
Version	Double Shut-Off	Seal Material	FKM
Valve Included	Yes	Outside Diameter	na
Hex Size	22 mm	Length	39 mm
Maximum Operating Pressure	200 bar	Application	Pneumatic & Fluid Handling
Minimum Operating Temperature	-15 °C	Division	Low Pressure Connectors Europe Division
Material	Brass	Connection Type	Male Thread - parallel
Connection Thread Size	3/8	Type	Plug
