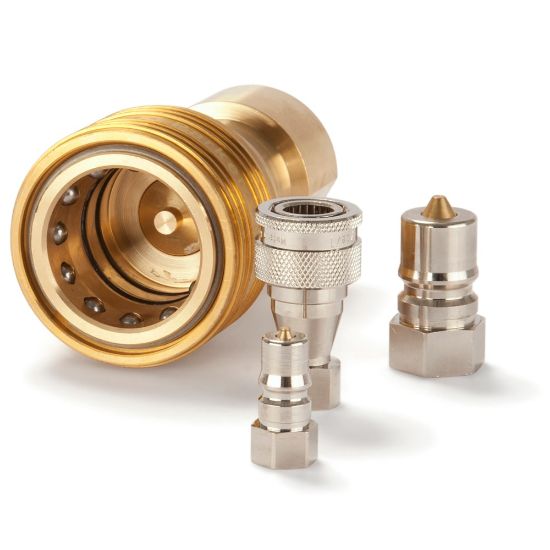

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 72SFIW13MXX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 72SFIW13MXX
SKU: 72SFIW13MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 72SFIW13MXX

Qty:

Products specifications

Attribute name	Attribute value
Length	35	Outside Diameter	na
Seal Material	without	Version	Straight-Through
Maximum Operating Pressure	100	Application	Pneumatic & Fluid Handling
Valve Included	No	Minimum Operating Temperature	-15 °C
Division	Low Pressure Connectors Europe Division	Flow Rate	1190 L/min
Maximum Operating Temperature	200 °C	Hex Size	19
Body Size	1/4
Material	Brass	Type	Plug
Connection Type	Female Thread - parallel	Connection Thread Size	1/4
