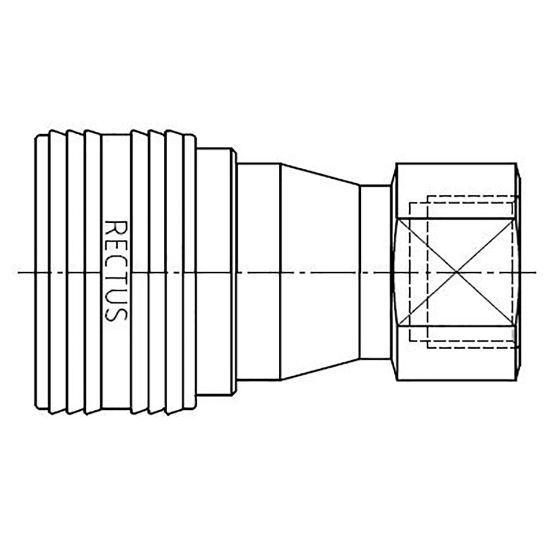

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 72KBIW13MEX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 72KBIW13MEX
SKU: 72KBIW13MEX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 72KBIW13MEX

Qty:

Products specifications

Attribute name	Attribute value
Length	57.5 mm	Minimum Operating Temperature	-40 °C
Version	Double Shut-Off	Valve Included	Yes
Maximum Operating Temperature	150 °C	Flow Rate	9 L/min
Hex Size	19 mm	Outside Diameter	25 mm
Seal Material	EPDM	Maximum Operating Pressure	200 bar
Application	Fluid Handling	Body Size	G 1/4
Division	Low Pressure Connectors Europe Division
Connection Thread Size	G 1/4	Type	Coupling
Material	Brass	Connection Type	Female BSPP
