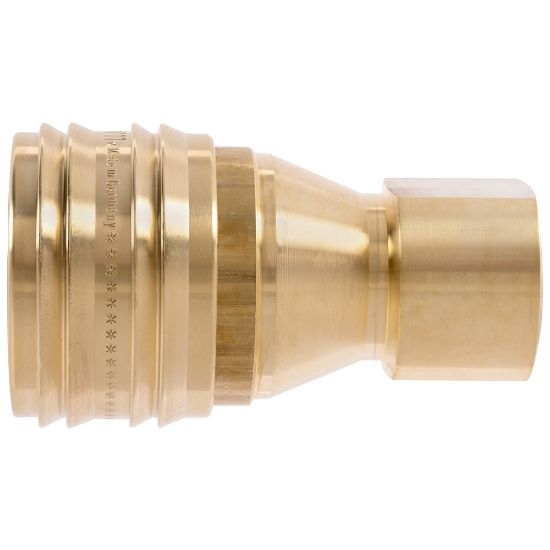

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 71KBIW10MPN

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 71KBIW10MPN
SKU: 71KBIW10MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 71KBIW10MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Application	Pneumatics
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	Maximum Operating Pressure	250 bar
Valve Included	Yes	Hex Size	14 mm
Outside Diameter	25 mm	Version	Double Shut-Off
Length	48.5 mm	Body Size	1/8 inch
Flow Rate	440 L/min
Type	Coupling	Material	Brass nickel plated
Connection Type	Female Thread - parallel	Connection Thread Size	1/8
