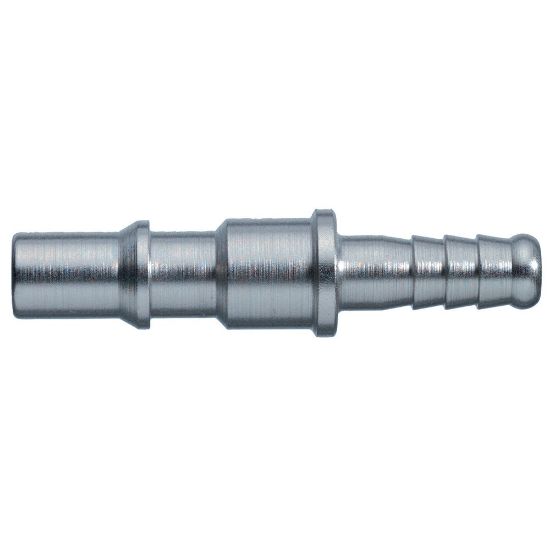

Quick Coupling with ISO 6150 C Profile, Series 84 - 84SFTF10SXN

Name: Quick Coupling with ISO 6150 C Profile, Series 84 - 84SFTF10SXN
SKU: 84SFTF10SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of brass/steel.

Availability:

Backordered

SKU: 84SFTF10SXN

Qty:

Products specifications

Attribute name	Attribute value
Version	Single Shut-Off	Length	65 mm
Minimum Operating Temperature	-20 °C	Valve Included	No
Hex Size	na	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C	Diameter	8 nom
Flow Rate	1960 L/min	Maximum Operating Pressure	35 bar
Outside Diameter	16 mm	Seal Material	na
Materials of Construction	Steel nickel plated
Hose I.D.	10	Connection Type	Hose Barb
Type	Plug	Connection Thread Size (inch)	na
